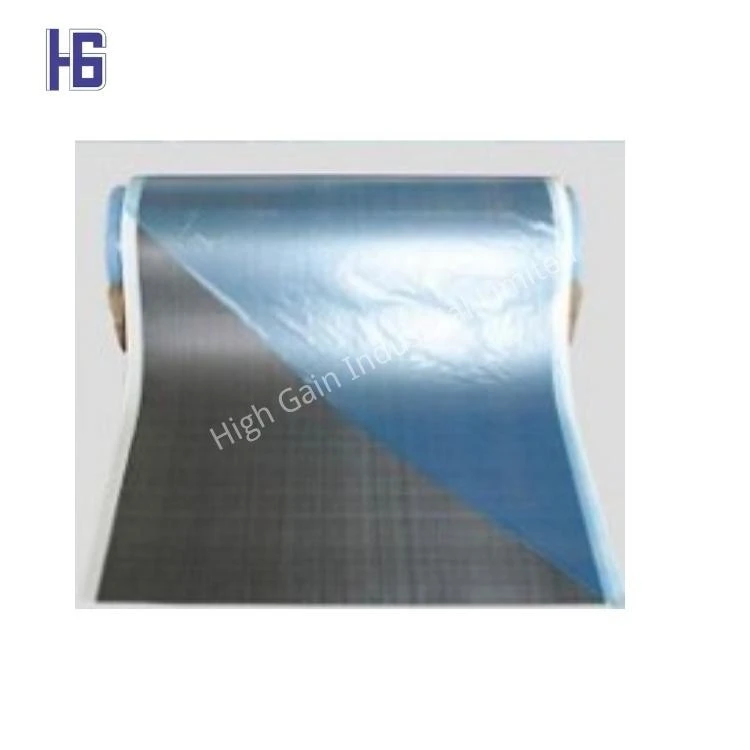

Carbon ud tape
If you're tired of materials that crack under pressure or limit your design creativity, meet Carbon Fiber PA6 Unidirectional Tape-the go-to solution for lightweight, high-performance parts that won't back down. Designed for engineers and manufacturers who need precision, durability, and flexibility (literally), this tape is reshaping industries from automotive to robotics. Let's dive in.
Why PA6 Unidirectional Tape?
Most composites are strong but brittle. Not this one.
PA6 (Nylon 6) Matrix: Unlike traditional epoxy-based carbon fiber, our thermoplastic PA6 base offers toughness that's off the charts. Think high impact resistance, better heat tolerance (up to 180°C), and the ability to bend without snapping. Perfect for parts that face real-world chaos-like engine components or sports gear.
Unidirectional Power: All fibers run in one direction, giving you insane strength exactly where you need it. Need a part that handles heavy loads lengthwise? This tape is like a steel beam in carbon fiber form-but 60% lighter.
| CF/PA6 UD Tape Technical Data | |||
| Physical Properties | |||
| Resin Content | % | ASTM D3529 | 34 |
| Density | g/cm³ | Density Balance | 1.37 |
| FAW | g/cm³ | Linear Density Calculation Method | 145 |
| Width | mm | / | 210 |
| Length | m | / | 0-500 |
| Thickness(compression molding) | mm | 30 bar | 0.15 |
| 0 Degree Tensile Strength | MPa | / | 1330 |
| 0 Degree Tensile Modulus | GPa | / | 97 |
| 0 Degree Bending Strength | MPa | / | 730 |
| 0 Degree Bending Modulus | GPa | / | 92 |
Who's Using This?
Auto Engineers: Reinforcing battery casings, door frames, or under-the-hood parts.
Aerospace Teams: Lightweight interior panels and structural brackets.
Sporting Brands: Durable bike frames, tennis rackets, or climbing gear.
Industrial Designers: Prototyping everything from robot arms to wearable tech.
Molding Processes
Carbon Fiber PA6 unidirectional tape can be molded by several methods:
Hot Pressing: Allows precise shaping and consolidation of the material.
Winding (in-situ curing): Suitable for creating cylindrical or curved structures.
Automatic lay-up (in-situ curing): Efficient for producing complex shapes with consistent quality.
Driving progress in many fields, this innovative material offers a versatile and high-performance alternative to traditional materials.
