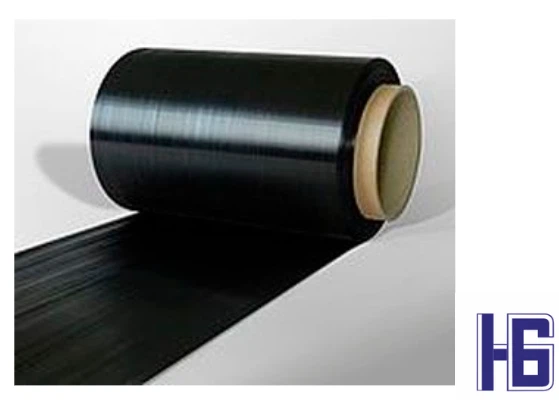

Carbon Fiber PEEK Unidirectional Prepreg

Product Overview

Carbon Fiber PEEK Unidirectional Prepreg is a high-performance composite material that combines the exceptional strength and stiffness of carbon fiber with the outstanding thermal and chemical stability of Polyether Ether Ketone (PEEK) resin. This prepreg, treated for enhanced performance, allows for the creation of lighter and stronger product designs without compromising quality.

Product Characteristics

Width:1mm-304mm

Thickness: 0.13mm-0.15mm

FAW:75-150gsm

RC：35-50wt%

Tensile modulus:130Gpa(ASTM 3039)

Tensile strength:2000Mpa(ASTM 3039)

Key Features

High Strength and Rigidity: Carbon fiber offers exceptional tensile strength and stiffness, ensuring that the material retains its shape and performance even under substantial loads.

Outstanding Thermal Stability: PEEK resin is capable of enduring continuous exposure to temperatures as high as 260°C, making it ideal for high-temperature applications.

Robust Chemical Resistance: It can withstand a diverse range of chemicals, including solvents, acids, and bases, making it well-suited for demanding environments.

Lightweight Construction: When compared to metal materials, carbon fiber composites significantly lower product weight while preserving or enhancing structural integrity.

Simplified Manufacturing: The prepreg format facilitates easy production, making it compatible with various molding techniques, such as vacuum bagging and automated tape laying.

Properties of PEEK Unidirectional Prepreg

1.No Corrosion

2.Dimension stability

3.Lows shrinkage, low water absorption, lowcoefficient of thermal expansion

4.Products can be reinforced by over molding

5.Recyclable/reusable

6.Good Fatigue Resistance

Applications

Carbon Fiber PEEK Unidirectional Prepreg is widely used in several fields:

Aerospace: Utilized in aircraft components and structures, improving performance and fuel efficiency.

Automotive Industry: Employed in racing cars and high-performance vehicles for lightweight components, enhancing speed and handling.

Medical Devices: Ensures safety and reliability under high-temperature sterilization conditions.

Electronics: Used for high-strength and lightweight electronic enclosures and brackets.

Summary

Carbon Fiber PEEK Unidirectional Prepreg stands out as a leading choice among high-performance composite materials due to its superior physical and chemical properties. Whether in extreme high-temperature or high-strength applications, or in scenarios requiring chemical stability, it showcases unique advantages. In modern engineering and manufacturing, it opens new possibilities for innovative designs.
