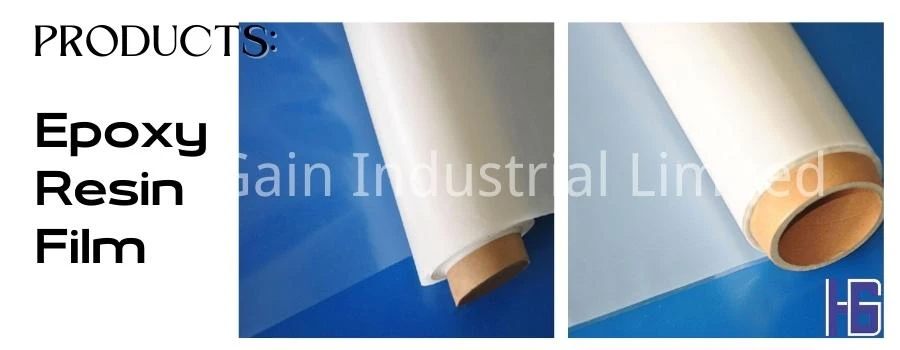

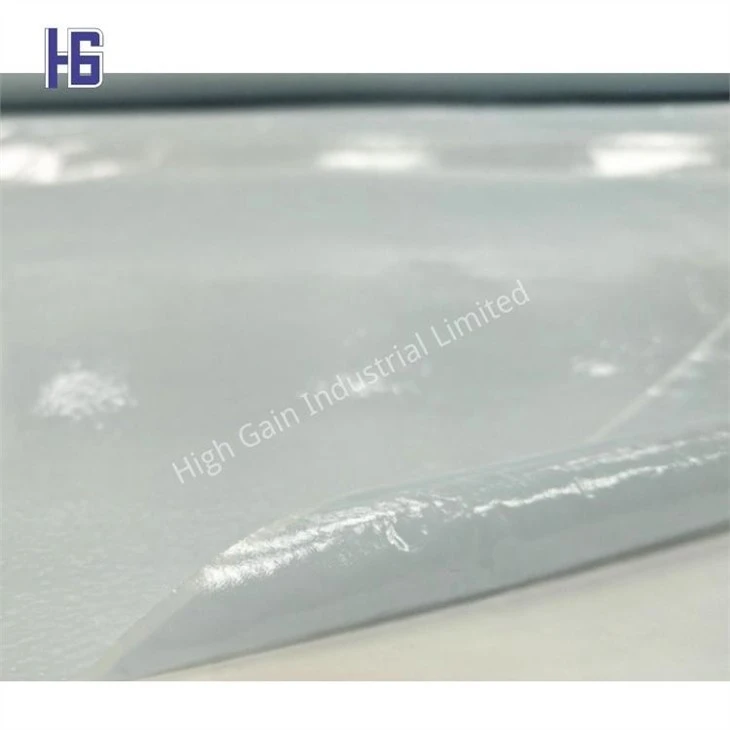

Epoxy Resin Film

HG-514E is medium temperature modified epoxy resin film which its resin fluidity is suitable for improving the surface quality of carbon fiber. It is with good toughness, high strength, strong manufacturability and being easy to use, or can be used for fabric impregnation.

Physical Performance: Transparent and uniform coating and thickness are ensured.

Weight: 75g/m², 100g/ m², 125g/ m², 150g/ m², 200g/m², etc., and can also be adjusted according to customer requirements.

Curing Temperature: 125-150°C

Curing Pressure: 2-5 Bar (0.2-0.5Mpa) 130°C 60min

6 Bar(0.6Mpa) 150°C 20min

Curing time and pressure can be adjusted according to fiber/resin, shape and thickness.

Tg (DSC) 130°C (curing 150°C 30min)

●Application: Epoxy Resin Film is suitable for dry molding process (production), especially suitable for products with strict control of resin content, and can be used simultaneously with epoxy prepreg.

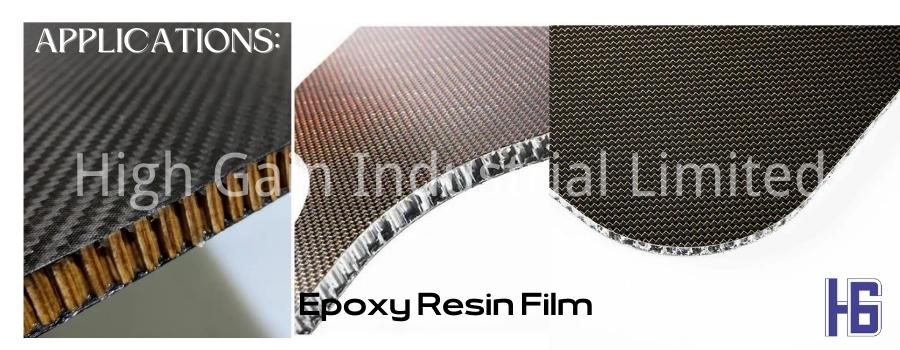

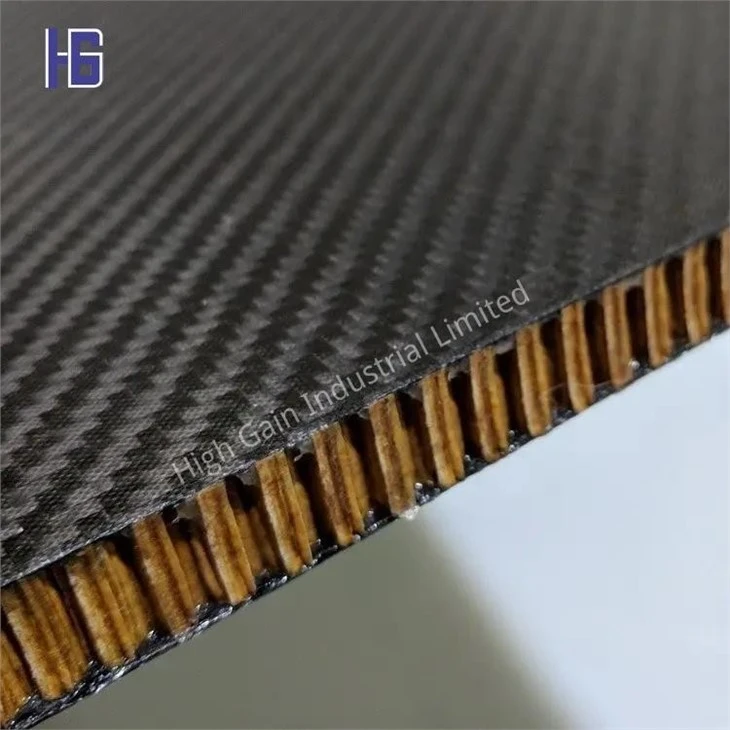

HG-514E resin sheets can be used for reinforcement for glass fiber, carbon fiber or aramid fabric as well as for unidirectional or three-dimensional braid. The finished product has very good mechanical strength.

●Operation method:

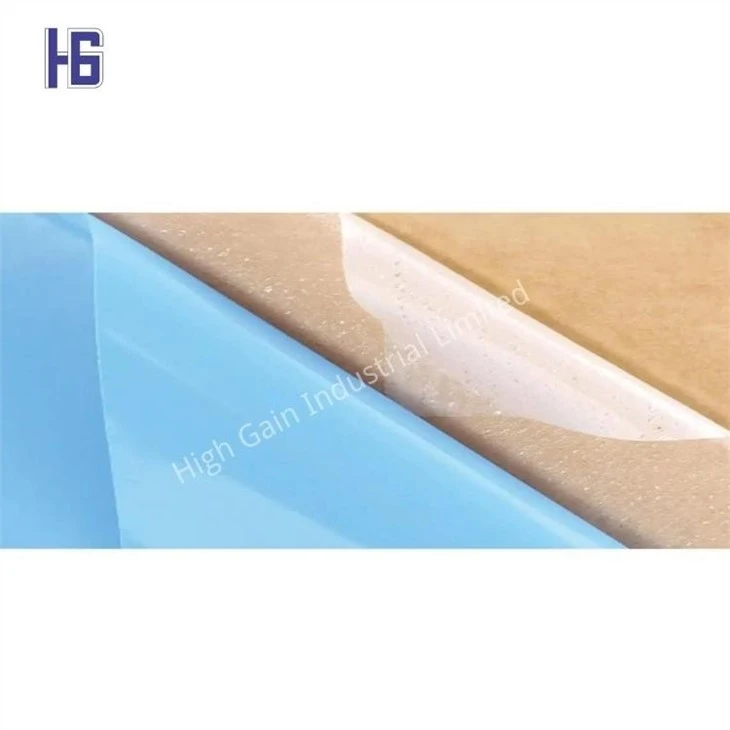

First, the ratio of the Epoxy Resin Film is determined by the strength required for the products. Cut the required film shape with a pairs of scissors outlining the product shape. Tear off a layer of release film on the resin and place it on the designated fabric followed by spreading the fabric on the mold. After they are stuck together, tear off another layer of release film on the epoxy film composite. If necessary, the number of resin film layers can be increased. The working temperature is 20-30°C. If the working temperature is too low, can consider using a heat gun.

The minimum resin usage can be calculated as follows:

MF/DF+M/D=Tp

Note:

MF----Epoxy film weight (g/m²)

DF----Epoxy film density (g/cm³)

M-----fabric weight (g/m²)

D-----Fiber density (g/m²)

Tp----product thickness (mm)

In order to discharge the bubbles before curing, it is advised to use a vacuum pressure of 0.2-0.5Mpa. If multilayer resin films are used, it can be rolled with a barbed roller to discharge the air.

The epoxy film can also be used together with the prepreg. The main consideration is the discharge of air bubbles. The appropriate pressure can fully infiltrate the fibers when the temperature is raised. The appearance of the finished product can be comparable to that of the autoclave.

●Curing:

HG-514E is generally cured at 150°C for 20 minutes or 130°C for 60 minutes. Two processes will occur after the mold is heated up:

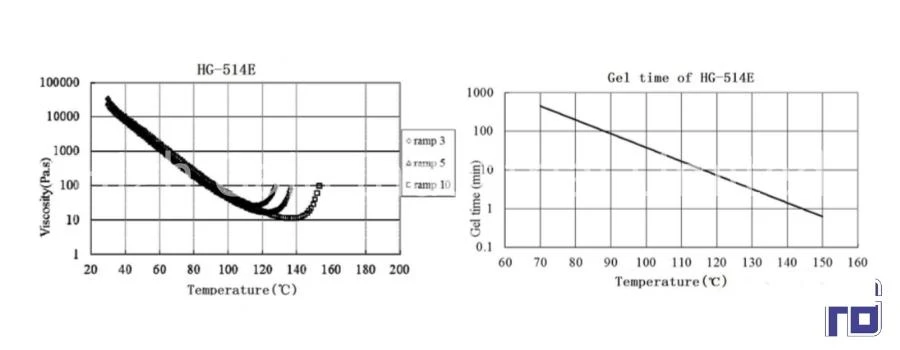

■ The viscosity of the epoxy resin adhesive film will decrease with increasing temperature so the fabric is impregnated.

■ The epoxy resin cures as the temperature rises.

Therefore, there should be enough time to let the resin flow and fill the fabric thoroughly when it reaches solidification. Therefore, the following two temperatures need to be determined:

----Impregnation temperature. The impregnation temperature of HG-514E is about 80°C. The easier the resin flows at high temperature, but the time is relatively short.

----Curing temperature: the resin is cured at this temperature. In theory, the curing time and pressure should be referenced to complete curing.

But in fact, the epoxy film can also be cured at a lower temperature, and only need to increase the post-curing process. If the product fails to complete curing, the product strength will be relatively reduced.

●Storage temperature: 4°C 3 months ; -18°C 6 months

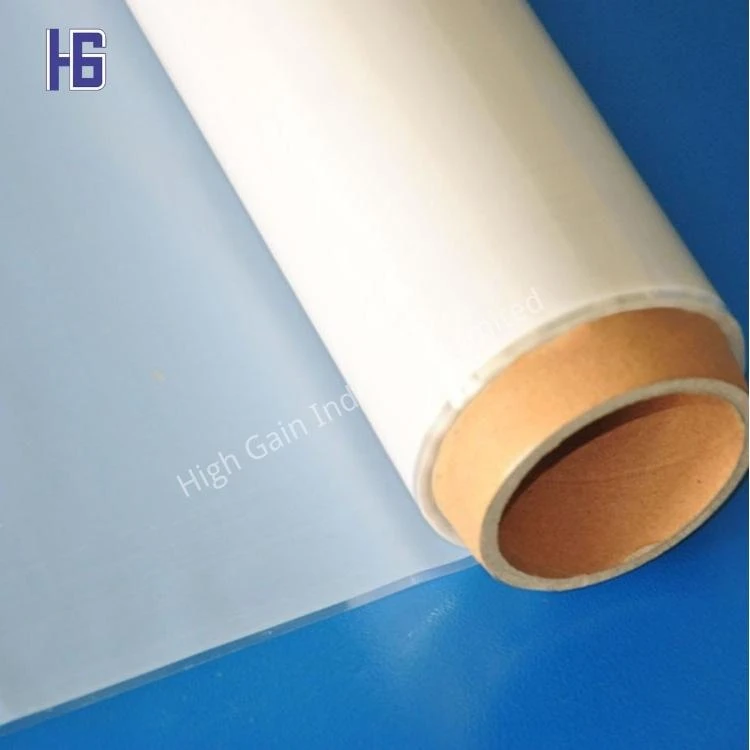

●Packing: double-sided release film; 1*100m/roll.
