Water Soluble Mandrel
Product Introduction

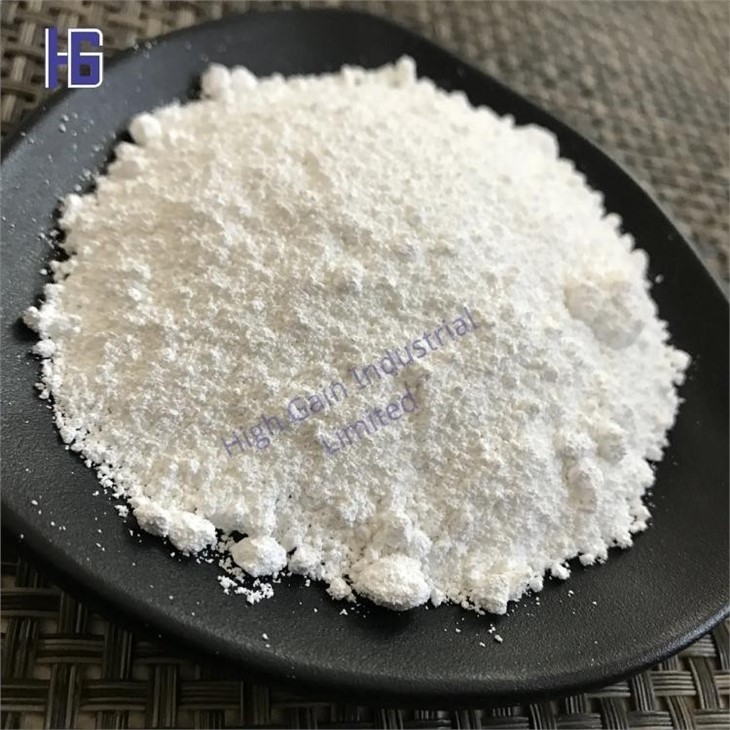

WSM-1014, Water Soluble Mandrel, is a white powder water-soluble mandrel. It is suitable for the formation of special-shaped components. The operation process is simple that it can be casted after adding a certain proportion of water and mixing them well. The mandrel after heating has high strength, low thermal expansion coefficient and good heat resistance that can be used in common thermosetting or thermoplastic composites.
Material Properties
Heat resistance: >220 oC
Compressive strength: > 200kgf/cm2
Coefficient of thermal expansion: ≤5*10-6 oC
Bulk density (g/ml): 1.00 +/- 0.05
Specific weight after moulding: 1.35 +/- 0.05
Physical Properties
|
Items |
Specification Value |
Testing Criteria |
|
Hardness |
82 +/- 3 |
ASTM D2240 |
|
Glass Transition Temperature |
230 +/- 10 |
ASTM D7028 |
|
Thermal Expansion Coefficient |
10 x 10-6 +/- 2 x 10-6 |
ASTM E831 |
|
Compression Strength |
>130 |
ASTM D695 |
Condition of Using
|
Mixing Ration (weight ration) |
100:35 |
|
Mixing Viscosity |
1600 +/- 200 |
|
Usable Time |
30 |
|
Moulding Conditional |
25 oC x 2hrs + 120 oCx3hrs |
*RV-#S06-100rpm@25 oC
Instructions
Mandrel Casting -> Mandrel Baking -> Water Soluble Mandrel Completion -> Pressing Special-shaped Components -> Washing to Remove Mandrel -> Component Completion

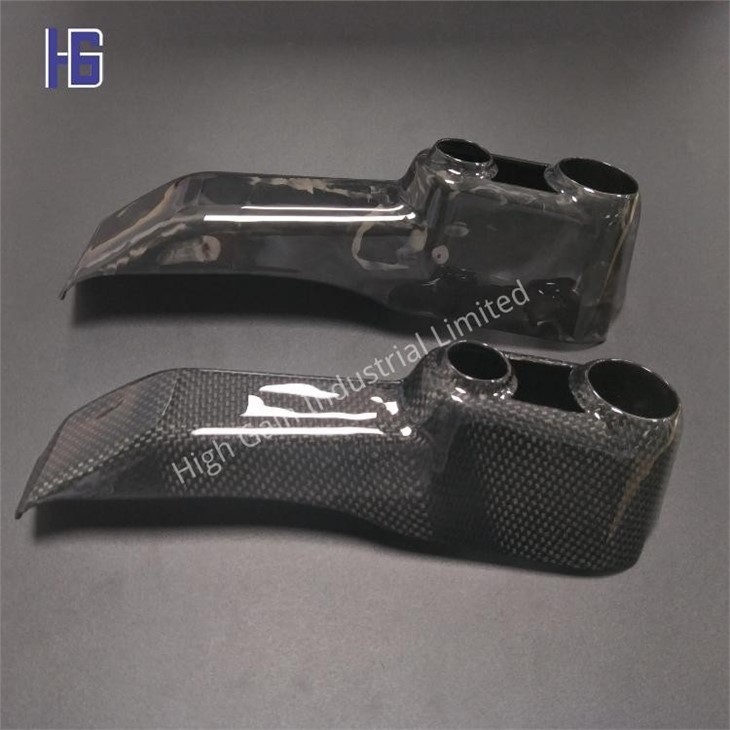

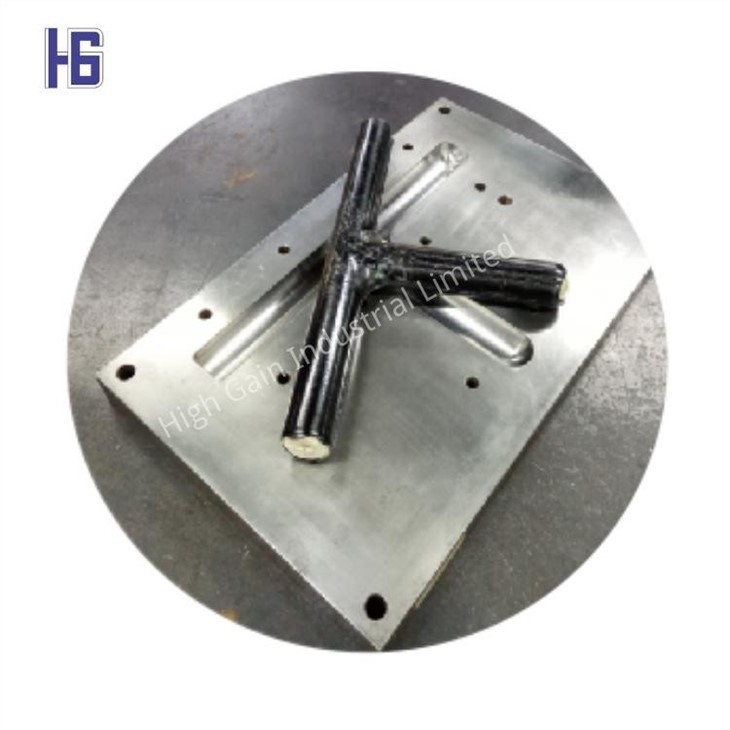

Mandrel Forming and Product Making
