Composite Carbon Fiber Fabrics

Composite Carbon Fiber Fabrics

Product Showcase

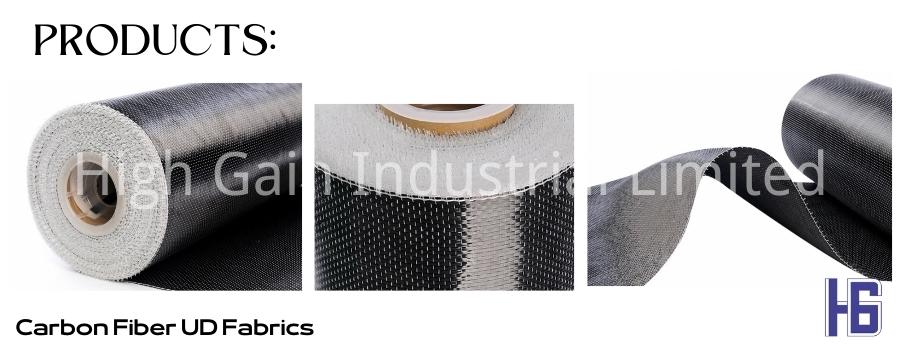

Composite carbon fiber fabrics, known as carbon fiber UD fabric, are characterized by a concentrated alignment of carbon fibers in one specific direction, commonly along the warp direction and with fewer fibers in the perpendicular direction, typically in a thin layer. As a result, the fabric's primary strength is centered in that primary direction.

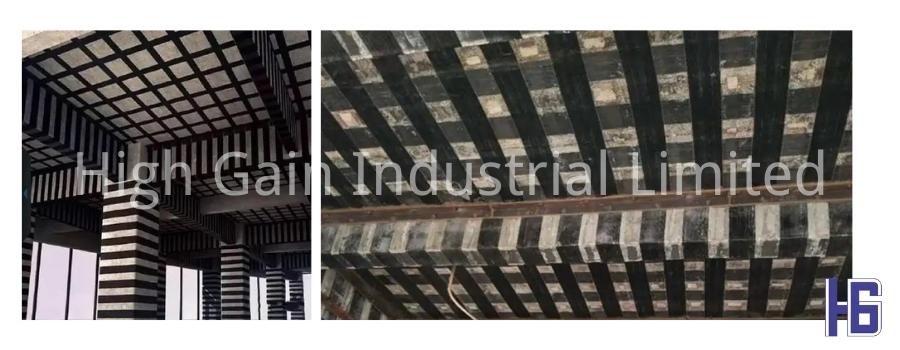

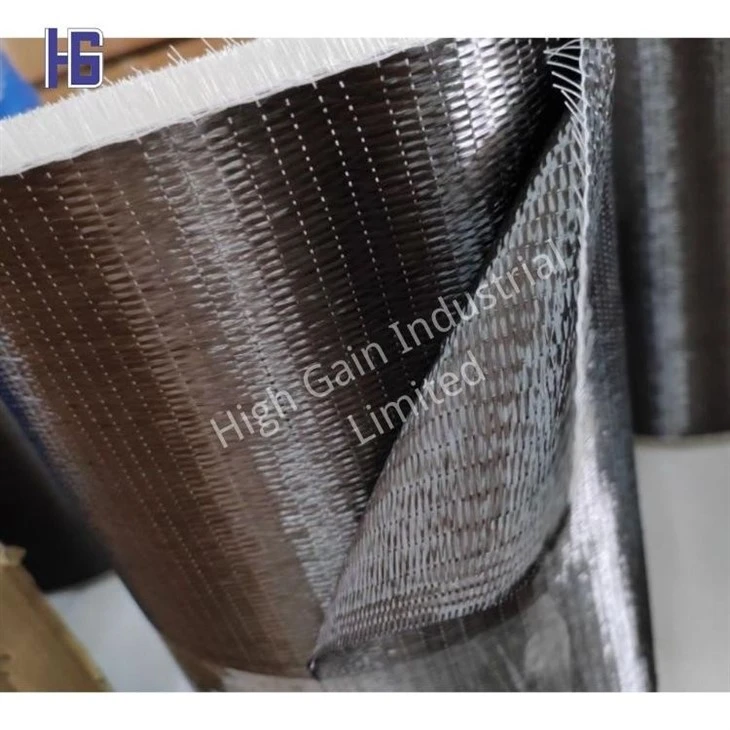

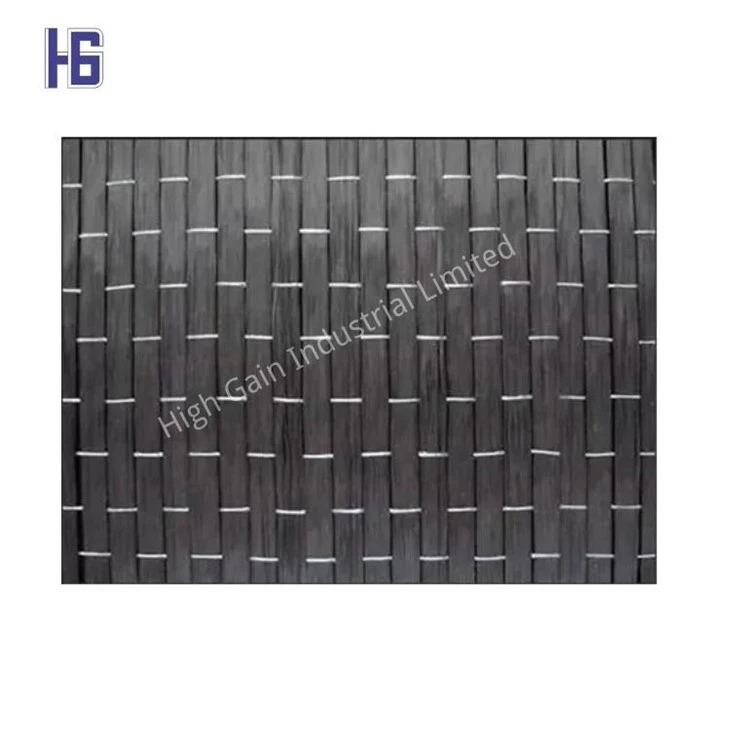

Despite the name "composite carbon fiber fabrics," it does not necessarily mean that carbon fibers exist solely in one direction. It includes carbon fibers in both the warp and weft directions, although the weft direction usually contains a sparse amount of carbon fiber yarn to stabilize and prevent spreading. By maintaining the full strength of the carbon fiber in the warp direction, composite carbon fiber fabrics are highly beneficial for reinforcement purposes. This blend of composite carbon fiber fabrics and resin is widely utilized as reinforcement materials in the construction of buildings and bridges.

The strength of carbon fiber is 7-10 times greater than that of steel of equivalent cross-section, while its mass is approximately one-fifth that of steel. Carbon fiber exhibits key qualities such as high strength, low weight, simple construction processes (including efficient resin impregnation, easy removal of bubbles, excellent workability, compact packaging, ease of handling, roll wrapping, convenient application in various orientations, strong adhesion to uneven surfaces, and absence of messy fiber cutting along the carbon fiber direction), as well as corrosion resistance. Serving as a groundbreaking reinforcement material, carbon fiber offers unparalleled advantages over conventional strengthening materials, marking a significant advancement.

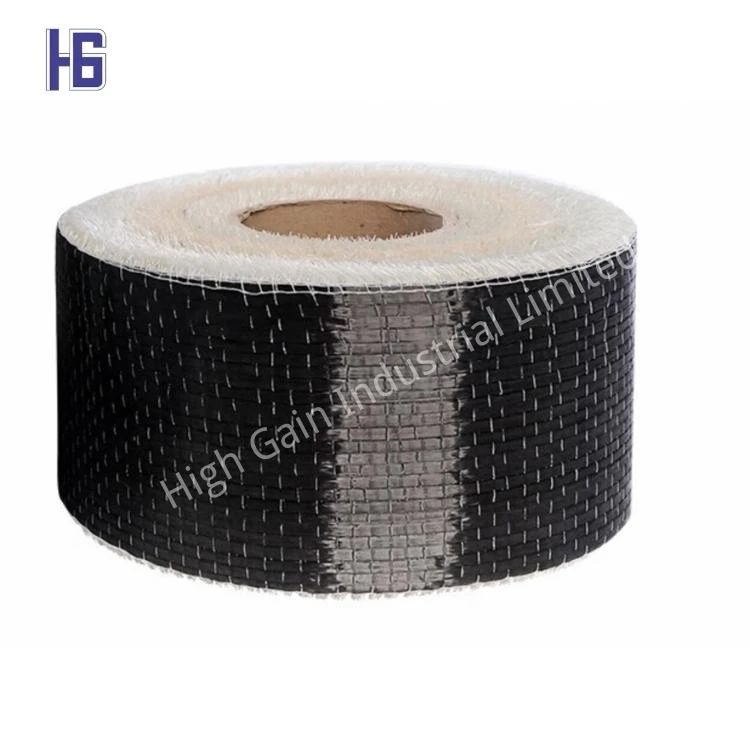

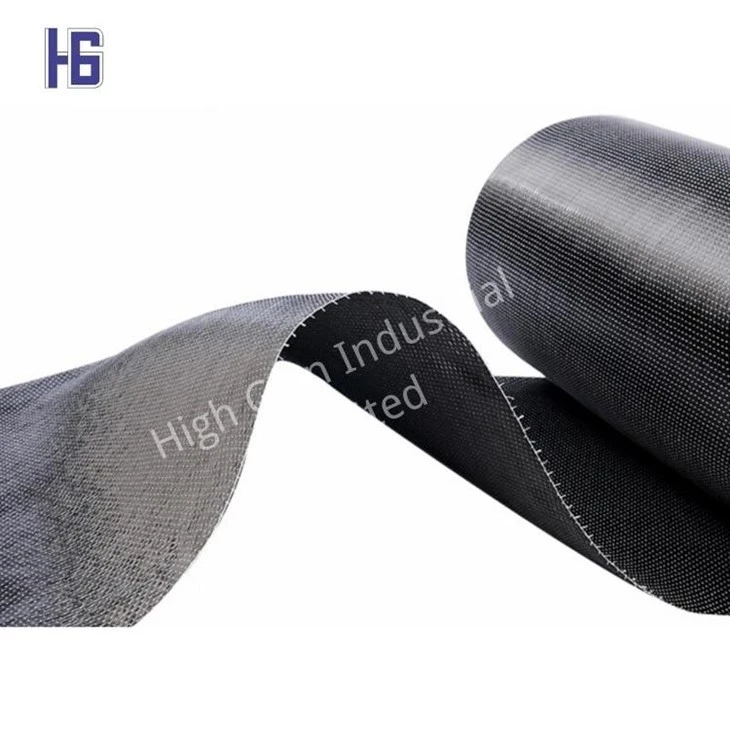

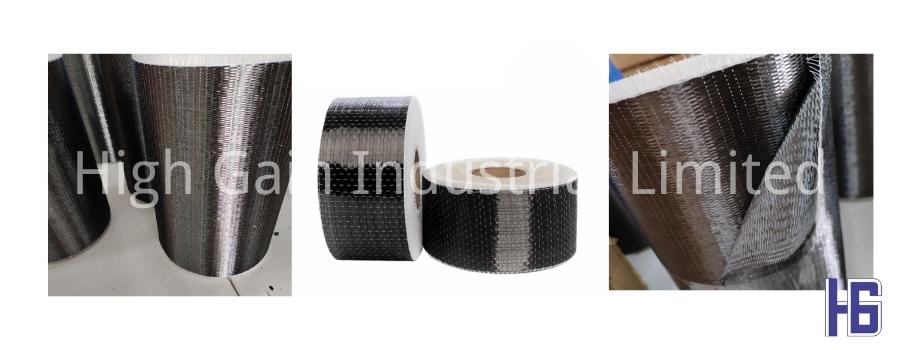

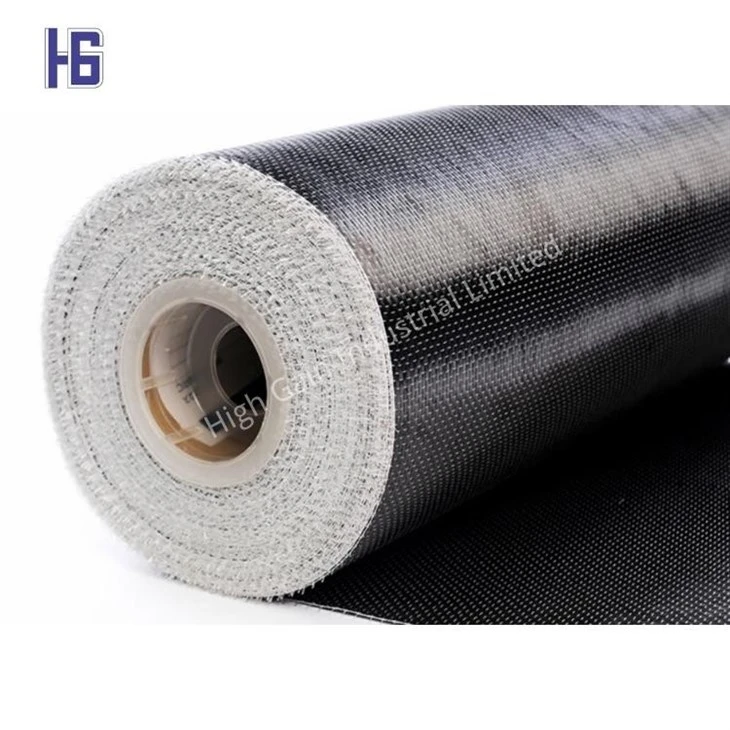

Name: Composite Carbon Fiber Fabrics

Length per roll: 100 meters

Available width options: 10cm, 15cm, 20cm, 30cm, 50cm, 100cm (or can be customized)

Fabric Area Weight (FAW): 250gsm or 350gsm

Quality Assurance in Construction

Due to the pliability of High Gain carbon fiber cloth, it guarantees effective adhesion even on uneven surfaces. While it's simple to eliminate air bubbles by using a syringe to inject the adhesive during application, this process is more challenging when working with steel plates.

Convenient Construction

The process is straightforward without the need for wet operations, large construction machinery, or fixed on-site facilities. High Gain carbon fiber cloth can be easily tailored, facilitating a quick and uncomplicated construction process.

Slim and Lightweight Design:

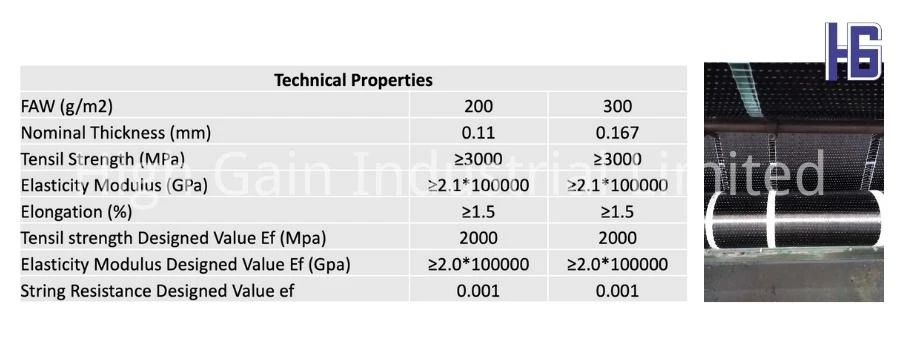

Post-application, the weight per square meter is under 1.0 kg (inclusive of adhesive weight). With a thickness of only 0.111mm/0.167mm per layer, the self-weight and overall dimensions experience minimal increase after repairs.

Versatile Usage

High Gain carbon fiber cloth boasts exceptional physical and mechanical characteristics, with a tensile strength surpassing ordinary steel by 7-10 times, exceeding 4000 MPa. This makes it highly suitable for reinforcing and refurbishing reinforced concrete structures.

Throughout this comprehensive exploration of composite carbon fiber fabrics, we have delved into their unparalleled strength, durability, and lightweight properties, which stand out significantly in various industrial applications. The unique structure of these fabrics, with fibers aligned in a single direction, not only maximizes tensile strength but also introduces a high strength-to-weight ratio essential for industries like aerospace, sports, and structural engineering. By emphasizing the inherent benefits and versatile applications of unidirectional carbon fiber fabrics, we underscore their critical role in the advancement of modern technology and their contribution to achieving superior construction and design efficiency.
