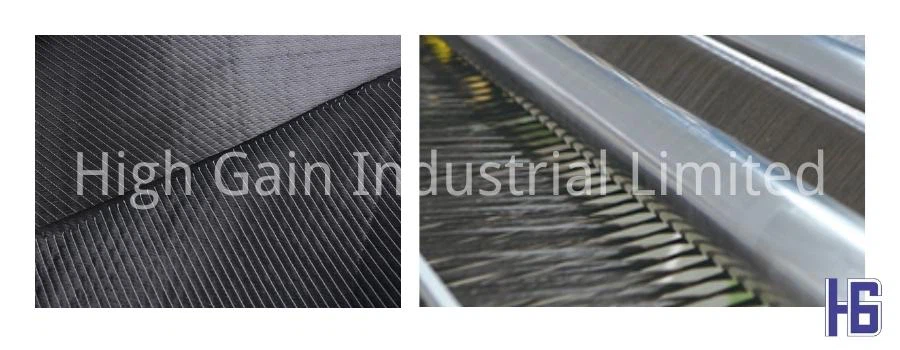

Multiaxial Fabric

High Gain provides multiaxial fabric carbon fiber or fiberglass. The multiaxial knitted fabric can be in 300gsm, 400gsm, 600gsm or 800gsm according to your need.



Product Name：Carbon Multiaxial Fabric (Biaxial Fabric)



Construction	Area Weight (g/m2)	Tolerance (+/-%)	Material
0 º	N/A	3	N/A
+45 º	150	3	12K
90 º	N/A	3	N/A
-45 º	150	3	12K
Stitching	6	3	PES 75D



Weight, total (g/m2) : 306+/-3% or 406+/-3%

Standard roll width (cm) : 127

Standard roll Length(Meter): 50

Stitch Type: Pillar

Stitching Gauge:E5

Stitching length: 2.5mm



Versatility in Reinforcement:

Multiaxial fabrics consist of multiple layers of fibers oriented in different directions (typically two or more), providing reinforcement along multiple axes.

This multidirectional arrangement enhances strength and stability in various directions, offering tailored reinforcement for complex shapes and load distributions.



Enhanced Mechanical Properties:

By combining fibers oriented at different angles, optimize mechanical properties such as tensile strength, stiffness, and impact resistance.

This results in superior performance compared to unidirectional fabrics or traditional woven fabrics, especially in applications with multidirectional loads.



Improved Conformability and Drapability:

Multiaxial fabrics are designed to conform easily to complex shapes and contours, offering excellent drapability during lay-up and molding processes.

Their flexibility allows for efficient application on curved or irregular surfaces, reducing material waste and improving manufacturing efficiency.

Tailored Reinforcement Options:

We can customize multiaxial fabrics by selecting specific fiber types, orientations, and weight distributions to meet the requirements of different applications.

This versatility enables the creation of reinforced composite structures with optimal performance characteristics for specific engineering needs.



Consistent and Homogeneous Reinforcement:

Fabrics provide uniform reinforcement throughout the structure, minimizing weak points and ensuring consistent mechanical properties.

This homogeneity enhances the structural integrity and reliability of composite parts, reducing the risk of delamination or failure under stress.



Wide Range of Applications:

Multiaxial fabrics find applications across various industries, including aerospace, automotive, marine, wind energy, and sports equipment.

They are used in the manufacture of structural components, such as aircraft fuselages, automotive body panels, boat hulls, wind turbine blades, and sporting goods, where high performance and durability are essential.

Each roll is wound on paper tube (3"-4" Dia.) with plastic film and packed in individual cardboard box.With pallet packing or without pallet packing upon customer's request.



Unless otherwise specified, it should be stored in a dry, cool and rainproof area; it is recommended that the room temperature and humidity should be always maintained at 35-65% respectively.
