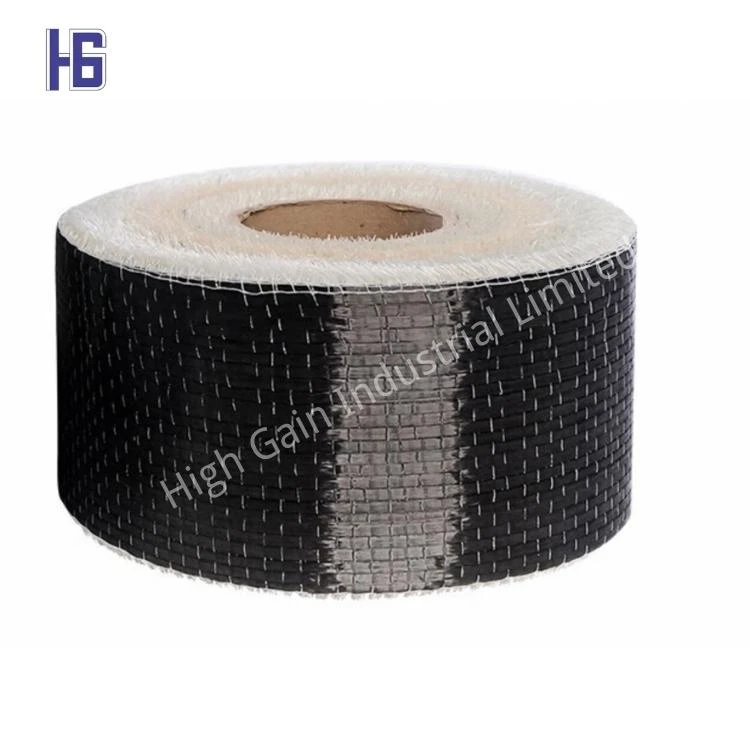

Unidirectional Carbon Fiber Cloth

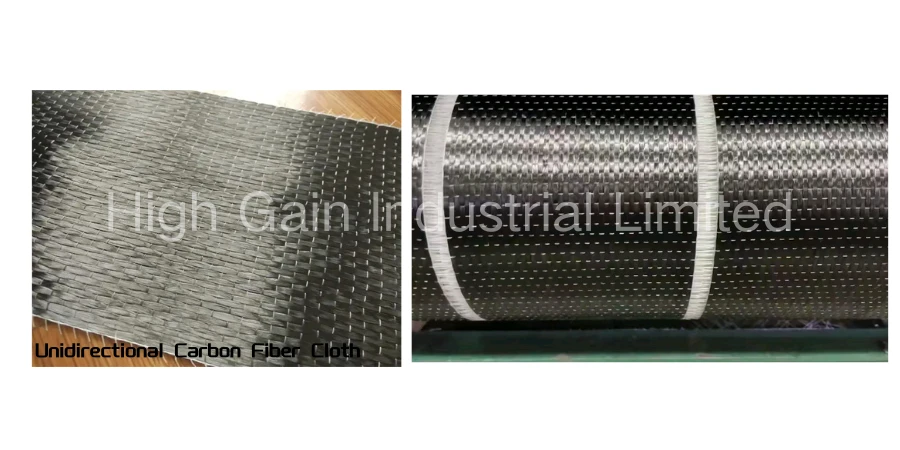

Our Unidirectional Carbon Fiber Cloth is a specialized fabric designed with a unidirectional concentration of carbon fibers, predominantly aligned in the warp direction, complemented by a minimal number of fibers in the weft direction to provide structure and prevent unraveling. This design ensures that the fabric's strength is predominantly in the warp direction, making it an ideal choice for reinforcement applications.

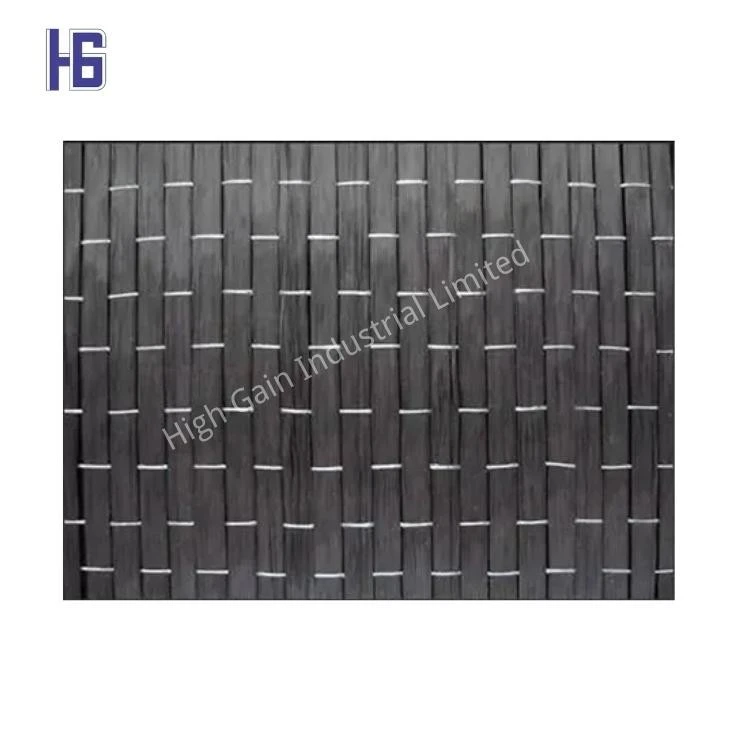

Though the term "unidirectional" suggests a singular orientation of fibers, our fabric actually incorporates both warp and weft fibers. The weft fibers, while sparse, serve to anchor the fabric and maintain its integrity. This construction preserves the superior tensile strength of the carbon fibers along the warp, which is particularly beneficial for reinforcement purposes. Consequently, our UD fabric, when combined with resin, is extensively utilized in the reinforcement of structures such as buildings and bridges.

Boasting a strength-to-weight ratio that surpasses steel by a factor of 7-10, with a mass only one-fifth that of steel, our carbon fiber cloth is characterized by its high strength, lightweight nature, and ease of construction. It offers advantages such as superior impregnation with resin, facile bubble removal, excellent workability, compact packaging, portability, and versatility in application. Its thin profile and lightweight design ensure minimal added weight and thickness post-application, with each square meter weighing less than 1.0kg (including adhesive) and a thickness of only 0.111mm/0.167mm per layer.

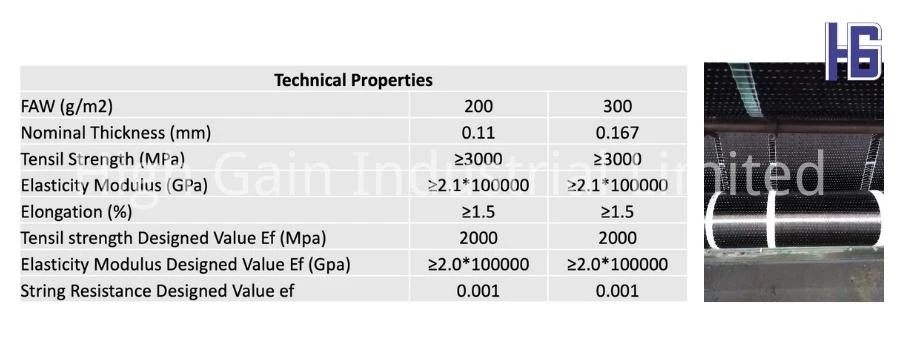

Product Specifications:

- Product Name: Unidirectional Carbon Fiber Cloth
- Roll Length: 100 meters
- Width Options: 10cm, 15cm, 20cm, 30cm, 50cm, 100cm (custom widths available)
- Fabric Areal Weight: 200 or 300 grams per square meter (gsm)

Key Benefits of Our Unidirectional Carbon Fiber UD Fabric:

1. Construction Quality Assurance: The soft texture of our carbon fiber cloth ensures a consistent adhesion effect, even on surfaces with irregularities. Bubbles can be easily removed by injecting adhesive, a process less feasible with steel plating.

2. Construction Convenience: Our fabric requires no wet operations and is free from the need for large construction machinery or on-site fixed facilities, making construction quick and convenient. It can be cut to size, with a simple application process and short duration.

3. Slim Profile and Lightweight: Post-application, the fabric adds minimal weight and thickness, with each square meter weighing less than 1.0kg (including adhesive) and a layer thickness of merely 0.111mm/0.167mm.

4. Broad Application Scope: With exceptional physical and mechanical properties, our carbon fiber cloth offers a tensile strength 7-10 times greater than that of conventional steel, peaking at over 4000 MPa, making it an excellent choice for the reinforcement and repair of reinforced concrete structures.
