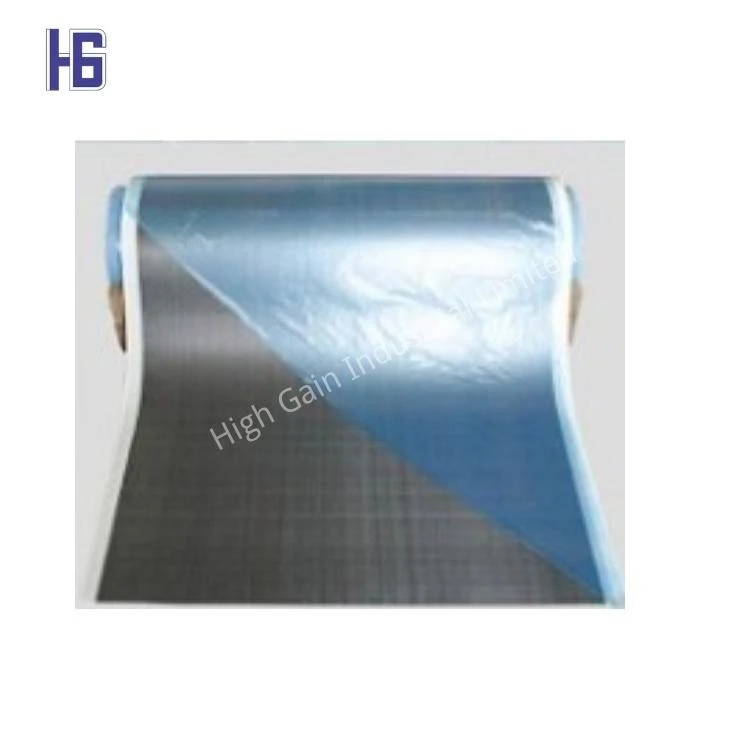

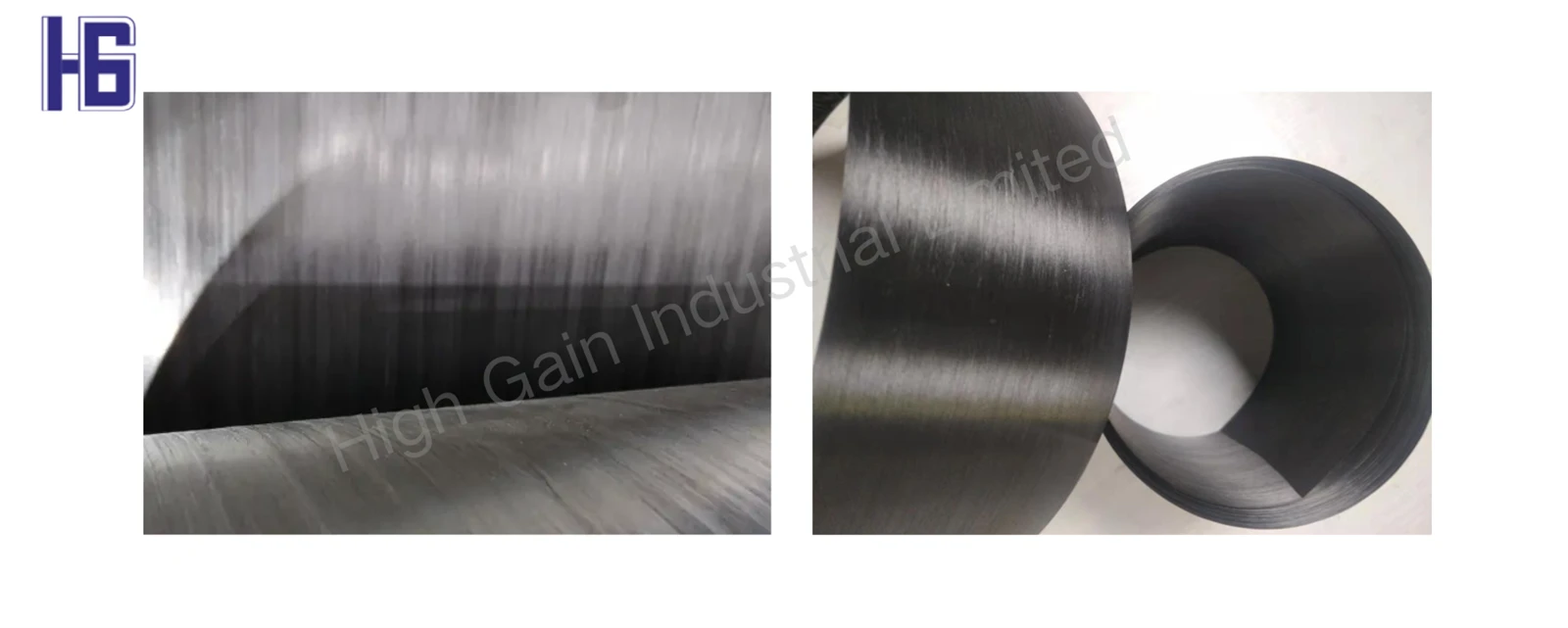

Thermoplastic Carbon Fiber composite tape

In demanding environments where material failure is not an option, our PA6 UD Tape with continuous carbon fiber reinforcement delivers the critical balance of strength and adaptability. Designed for automotive, aerospace, and industrial applications, this advanced composite material outperforms conventional solutions without compromising functionality.



Core Advantages

▌Metal-like Strength, Polymer Weight

Achieves structural rigidity comparable to metals

50% lighter than traditional metallic materials

Ideal for weight-sensitive applications

▌Engineered Longevity

Withstands sustained abrasion and mechanical stress

Self-lubricating surface minimizes maintenance requirements

Resistant to oils, solvents, and industrial chemicals

▌Certified Safety

Odorless and non-toxic formulation

Compliant with food-grade standards

Indefinite shelf life at room temperature storage

Industry Applications

Automotive Systems

Lightweight engine covers and intake manifolds

High-strength structural components

Fuel efficiency enhancement solutions

Aerospace & Robotics

Precision parts requiring strength-to-weight optimization

Wear-resistant robotic guidance systems

Corrosion-free aerospace assemblies

Industrial Machinery

Durable guide plates for textile production

Low-friction rollers in automated systems

Chemically stable processing components



Manufacturing Versatility

Hot Pressing: Complex geometry formation

Winding Technology: Seamless cylindrical structures

Automated Lay-Up: High-volume production consistency



Technical Specifications

Property	Value
Heat Resistance	105°C (long-term)
Operating Temp	65°C (continuous)
Storage	Room temperature
Safety Certifications	Food-grade compliant





CF/PA6 UD Tape Technical Data
Physical Properties
Resin Content	%	ASTM D3529	34
Density	g/cm³	Density Balance	1.37
FAW	g/cm³	Linear Density Calculation Method	145
Width	mm	/	210
Length	m	/	0-500
Thickness(compression molding)	mm	30 bar	0.15
0 Degree Tensile Strength	MPa	/	1330
0 Degree Tensile Modulus	GPa	/	97
0 Degree Bending Strength	MPa	/	730
0 Degree Bending Modulus	GPa	/	92
