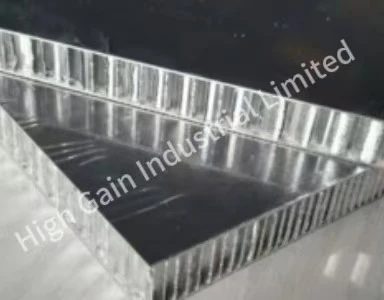

Carbon Fiber Honeycomb Panels

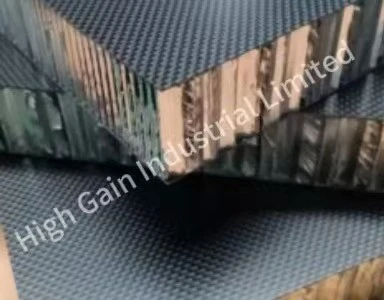

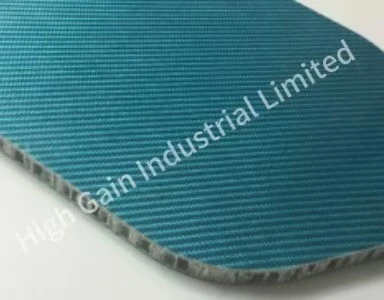

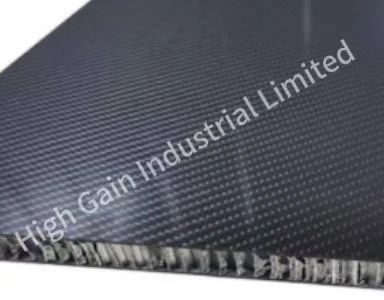

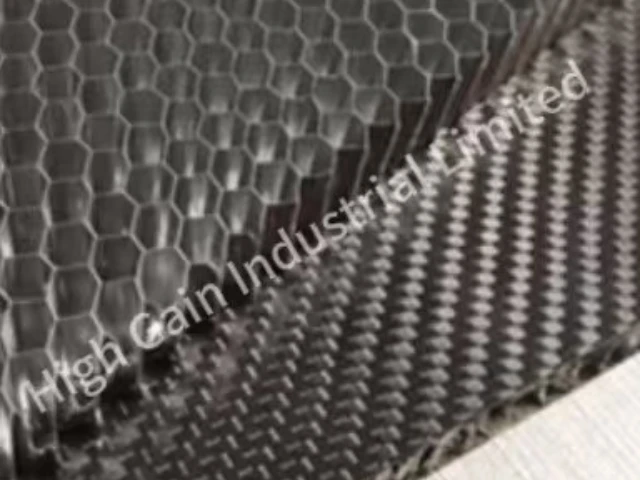

Carbon fiber honeycomb panels are made by bonding carbon fiber prepreg and aramid honeycomb core with adhesive film. The aramid honeycomb core is tightly bonded to the upper and lower carbon fiber panels to form a sandwich structure. This structure can achieve a combination of panel strength and rigidity.
What are the outstanding features?
Weather resistance
Carbon fiber panels are thermosetting polymer materials with excellent temperature resistance. The supported temperature range is -50℃~80℃.
Impact resistance
The criss-crossing carbon fiber reinforcements in the product structure can significantly improve the product's impact resistance. Even if it is impacted by gravel and hail, it will not break easily.
Corrosion resistance
It can resist corrosion from various acids, alkalis, and other chemical substances. It is particularly suitable for use in coastal and corrosive areas. It has good chemical stability in the atmosphere, water, and general concentrations of acid, alkali, salt, and other media; it is precisely because of this special gel coat that the surface finish of the compartment panel is high, the light retention is excellent, it does not change color, is corrosion-resistant, light-resistant and aging-resistant.
Carbon fiber honeycomb panels are light in weight, much lighter than wood composite panels and steel panels, and can effectively reduce the weight of the box, increase the load capacity, and improve the mass coefficient of the van.
High-tech applications
Carbon fiber honeycomb panels are light in weight, much lighter than wood composite panels and steel panels, and can effectively reduce the weight of the box, increase the load capacity, and improve the mass coefficient of the van.
Customization
We can customize it according to user needs. See the table below for common fabric information:
|
Skin (0.3~0.35mm) |
Semi-carbon (single carbon fiber and double glass fiber). Semi-carbon (double carbon fiber and single glass fiber) T300 carbon fiber. T300 Teflon frosted carbon fiber T300 fine frosted carbon fiber. T700 carbon fiber. T700 Teflon frosted carbon fiber. T700 fine frosted carbon fiber. 3K carbon fiber. 3K Teflon frosted carbon fiber 3K fine frosted carbon fiber |
|
Core material |

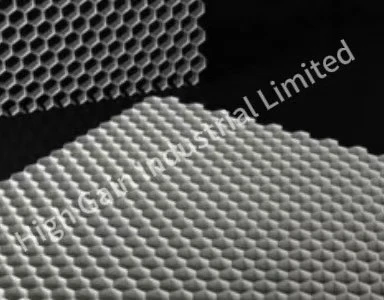

Polypropylene honeycomb core. (Density: 60~160kg/m:: Honeycomb size: 6~12mm.) |
|
Total thickness |
10~20mm. |
|
Dimensions |
1220x2440mm, customizable |
|
Surface treatment |
High gloss/matte |
|
Surface texture |
Plain, twill, satin, unidirectional |
Welcome your consultation
Website： https://www.hgcomposites.com
E-mail：Info@Highgaincomposites.Com
Phone：85254484183
