Name: China Aluminum Honeycomb Board Manufacturers - Aluminum Honeycomb Board Suppliers Factory
Brand: High Gain
SKU: 258410488

Aluminum honeycomb boards were first used in the aerospace field. After the surface is treated with fluorocarbon resin with strong corrosion resistance, it can be widely used in the decoration of curtain walls, roofs, and interior walls of buildings.

Send Inquiry

Product Introduction

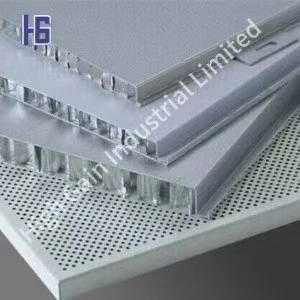

Aluminum Honeycomb Board

qualified

请替换当前内容 We always use natural wood and log as materials, without any splicing or chemical processing, which is natural, environment-friendly and of good quality. Give your home the best touch and atmosphere

environment-friendly

We always use natural wood and log as materials, without any splicing or chemical processing, which is natural, environment-friendly and of good quality. Give your home the best touch and atmosphere

Applications of aluminum honeycomb Boards

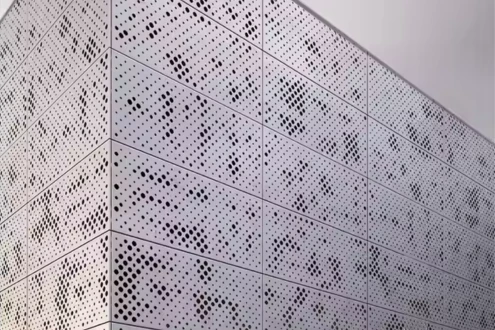

Exterior wall panels

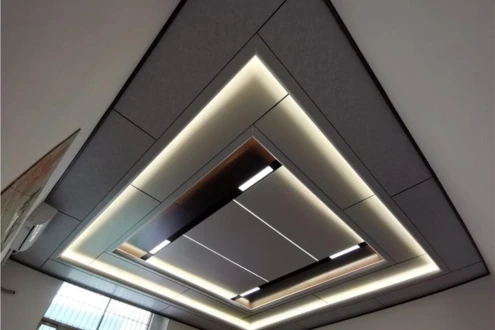

Interior decoration projects

Billboards

Aerospace industry

Commercial transport vehicle bodies

Subway and rail transit vehicles

Common installation methods for aluminum honeycomb curtain walls

Lifting ear type

The lifting ear is processed separately and connected to the glue joint position of the honeycomb panel. The suitable width of the glue joint is ≥12mm. This installation method makes processing simple and installation convenient.

Flanging type

Installation only requires a comfortable connection with the keel and glue joint. The suitable glue joint width is ≥10mm. This method is easy to install.

Buckle strip type

The buckle strip is a specific profile and is easy to install, but it requires high processing accuracy of the plate. It is not recommended to use it for plates with a length greater than 3000mm

Performance of aluminum honeycomb Boards

Environmental protection

No volatilization of gases harmful to the human body, no radioactivity, and can be fully recycled

Corrosion resistance

The surface of aluminum honeycomb panels is treated with epoxy fluorocarbon and has strong corrosion resistance

Fireproof

Aluminum honeycomb panels are non-combustible materials.

Easy processing

Aluminum honeycomb panels are easy to disassemble and assemble, lightweight, convenient for transportation, and can be reused many times.

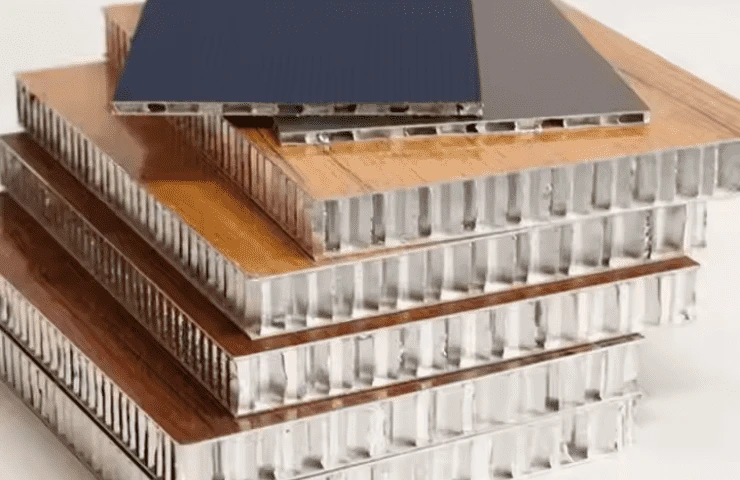

Product Specifications

1. Sheet width

1000mm, 1220mm, 1500mm, maximum width 2000mm

2.Sheet length

cut as needed, recommended within 5800mm

3.Sheet thickness

10mm, 15mm, 18mm, 20mm, 25mm or other customized thickness from 5mm to 100mm

4. Panel thickness

0.5mm, 0.7mm, 0.8mm, 1mm, maximum thickness 3mm

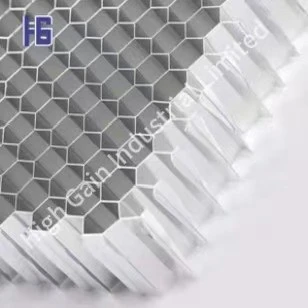

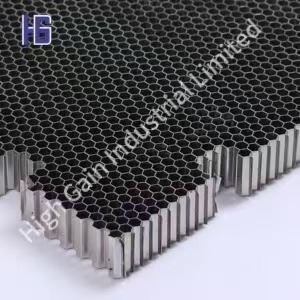

5.Honeycomb core specification

A6*0.05 (honeycomb core diameter 9.5mm, side length 6mm)

6. Surface coating

various colors and surface treatments such as light aluminum, fluorocarbon, polyester, anodizing, etc.

7. Edge treatment

trimming or hemming

Customized production

High Gain Carbon Fiber Composites specializes in the production of high-quality carbon fiber products, including carbon fiber plates, carbon fiber tubes, carbon fiber sheets, carbon fiber plywood, and other products of various sizes and specifications. We can customize according to customer needs and provide products of various sizes and specifications. We can also provide customers with professional advice and technical support to help customers choose the carbon fiber products that best suit their needs.
