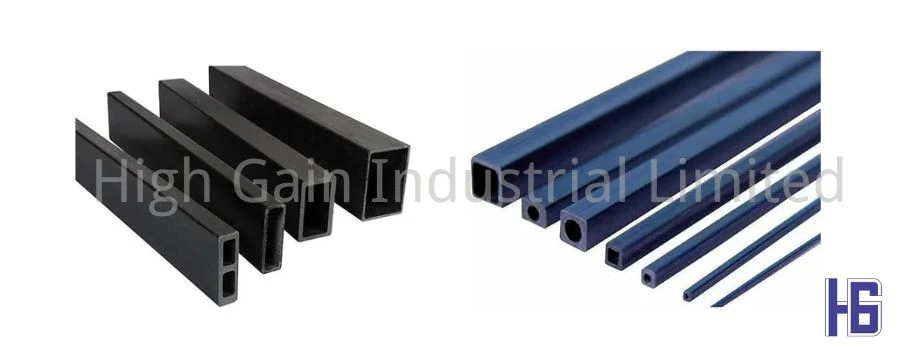

Production and Applications of Carbon Fiber Square Tube
Producing carbon fiber square tubes involves several steps, and it requires precision and expertise. Here's an overview of the process:
1. Material Selection:
Start with high-quality carbon fiber fabric. The specific weave pattern, fiber orientation, and resin type are chosen based on the intended application and required properties.
2. Prepreg Creation:
Impregnate the carbon fiber fabric with epoxy resin to create prepreg sheets. These prepreg sheets are cured to achieve the desired stiffness and strength.
3. Layup:
Cut the cured prepreg sheets into strips or tapes. These strips are laid up in a specific pattern, often using a combination of unidirectional and woven prepregs. The strips are placed at different angles to optimize the strength and stiffness of the square tube.
4. Vacuum Bagging:
Once the layup is complete, the assembly is placed in a vacuum bag. Vacuum bagging removes air and ensures proper compaction of the carbon fiber layers.
5. Curing:
The assembly is then placed in an autoclave or oven and subjected to controlled heat and pressure for curing. This process solidifies the epoxy resin and forms a rigid structure.
6. Trimming and Machining:
After curing, the square tube is trimmed to its final dimensions. Precision machining may be used to achieve exact tolerances and a smooth finish.
7. Surface Finish:
Depending on the application, a surface finish or coating may be applied to protect the carbon fiber and provide additional aesthetic or functional properties.
Applications of Carbon Fiber Square Tubes:
Carbon fiber square tubes find applications in various industries due to their exceptional strength-to-weight ratio, stiffness, and resistance to corrosion. Here are some common uses:
1. Aerospace: Carbon fiber square tubes are used in aircraft structures, where weight reduction is crucial. They provide structural support and reduce the overall weight of the aircraft.
2. Automotive: In the automotive industry, these tubes are employed in chassis components and structural elements. Their lightweight properties improve fuel efficiency and handling.
3. Marine: Carbon fiber square tubes are utilized in boat and yacht construction for masts, rigging, and other structural elements. Their resistance to corrosion is particularly advantageous in marine environments.
4. Robotics: The stiffness and strength of carbon fiber square tubes make them suitable for use in robotic arms, where precision and lightweight construction are essential.
5. Sporting Goods: Products like bicycle frames, golf club shafts, and archery equipment benefit from the lightweight and high-performance characteristics of carbon fiber square tubes.
6. Renewable Energy: In wind turbines, carbon fiber square tubes are used for blade construction. Their high strength and low weight contribute to the efficiency of wind energy generation.
7. Industrial Equipment: These tubes find applications in various industrial equipment, such as automation machinery and conveyor systems, where their durability and low weight are advantageous.
8. Construction: In construction, carbon fiber square tubes are used for architectural features, facades, and structural elements, where their lightweight nature simplifies installation.
9. Medical Devices: The high strength and biocompatibility of carbon fiber make it suitable for medical applications like orthopedic implants and diagnostic equipment.
Carbon fiber square tubes are versatile components that have the potential to enhance performance, reduce weight, and increase the durability of products across numerous industries. Their unique combination of properties makes them a favored choice for engineers and designers seeking to optimize the performance of their applications.
High Gain produces carbon fiber square tubes by pultrusion and compression molding with various specification. Contact us for your customised carbon fiber square tubes.
