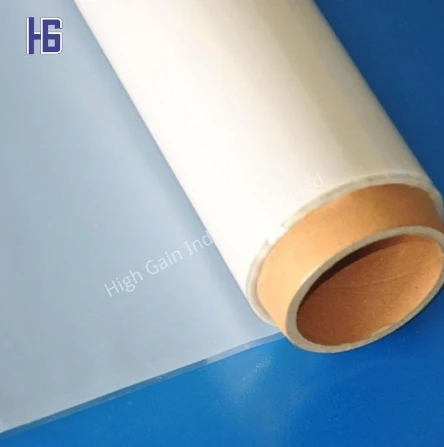

Resin Film Infusion
Achieve aerospace-grade quality without the complexity. Our Resin Film Infusion (RFI) technology delivers flawless, high-strength composite parts with minimal voids, reduced labor, and unmatched consistency-ideal for demanding industries where performance and cost-efficiency matter.
Why RFI Outperforms Traditional Methods
-
1. ✅ Zero Voids, Maximum Strength
-
<1% Porosity: Engineered resin films melt uniformly, saturating fabrics completely to eliminate air pockets.
-
30% Higher Interlaminar Shear Strength vs. hand lay-up, ensuring structural integrity for critical components.
-
-
2. ⏱️ Streamlined Production
-
60% Faster Cycle Times: Pre-positioned resin films skip messy wet-out steps-go from dry fabric to cured part in one efficient process.
-
Minimal Skill Requirement: Reduce training costs and human error; ideal for high-volume production.
-
-
3. 💰 Cost-Effective Performance
-
No Autoclave Needed: Cure under vacuum or low pressure (1–5 bar), slashing equipment costs by up to 70% vs. prepreg.
-
Near-Net Shape: Minimizes post-machining and material waste by >25%.
-
-
4. 🌡️ Consistent, Controlled Results
-
Precise resin/fiber ratios (e.g., 35:65 ±2%) and uniform distribution.
-
Wide processing window: Cures at 80–180°C (compatible with epoxy, BMI, and thermoplastic resins).
-
Key RFI Material Advantages
| Component | Benefit |
|---|---|
| Dry Fabrics | Carbon, glass, or aramid-flexible fiber selection for tailored properties. |
| RFI Resin Films | Pre-measured thickness (0.1–0.5mm); low volatility, bubble-free melt flow. |
| Release Films | High-temp stability (>200°C), easy peel-off with zero residue. |
How RFI works
- Layer fabric + resin film + peel ply on the mold.
- Seal under vacuum bag; apply heat/pressure.
- Melt & Infuse resin flows evenly through fabric.
- Cure into a dense, void-free laminate.
Ideal Applications
Aerospace: Interior panels, brackets, UAV components.
Automotive: Body panels, battery enclosures, suspension parts.
Wind Energy: Spar caps, root fittings-large, high-fatigue parts.
Industrial: Robotics arms, pressure vessels, corrosion-resistant ducts.
Elevate Your Composites-Without Compromise or Complexity.
→ [Request RFI Sample Kit] | [Download Technical Guide] | [Schedule a Process Review]
