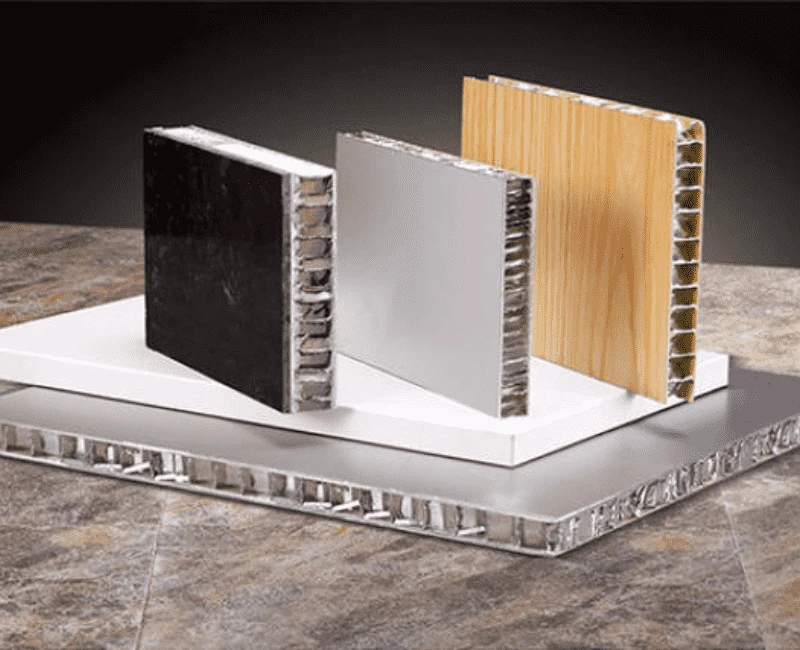

Honeycomb Aluminium Sheet
Common Honeycomb Aluminium Sheet Materials
Punching honeycomb aluminum plate
1
>>
Carved honeycomb aluminum plate
2
>>
Imitation wood grain honeycomb aluminum plate
3
>>
Imitation stone honeycomb aluminum plate
4
>>
Curved and special-shaped honeycomb aluminum plate
5
>>
Fluorocarbon honeycomb aluminum plate
6
Material characteristics
The surface size of the honeycomb aluminum panel can reach 1500*5000mm and can maintain excellent flatness.
The weight is only 5-5.5KG/square meter, which greatly reduces the load-bearing capacity of the building.
It is not easy to deform and can meet the requirements of wind pressure resistance of super high-rise buildings.
Outstanding advantages
Green, environmentally friendly, and energy-saving
Lightweight, high strength, high rigidity, stable structure, good wind pressure resistance
The surface is surprisingly flat and has a variety of colors
Common product specifications
|
type |
Honeycomb Aluminium Sheet |
Titanium zinc honeycomb panel |
Stone honeycomb panel/rock honeycomb panel |
|
thickness |
4mm～60mm |
6mm～20mm |
6mm～25mm |
|
width |
1220mm,1250mm,1500mm,2000mm |
1000mm |
1000mm,1500mm |
|
length |
≤9000mm, special customization |
≤6000mm, special customization |
2400mm, 3000mm, special customization |
|
Material |
Aluminum alloy: 0.5～1.0mm |
Zinc/Titanium Zinc: 0.7mm |
Stone: 3mm～5mm |
Current status of aluminum honeycomb panels

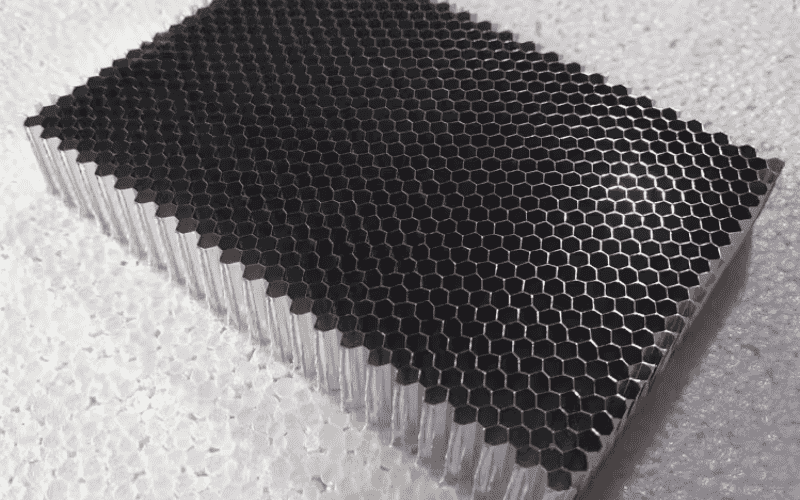

The core material uses a hexagonal 3003 aluminum honeycomb sheet, the aluminum foil thickness is 0.04~0.06mm, the side length is 5~6mm, and it uses polymer film and modified epoxy, fully enclosed and dust-free operation, and is made by pressurized high-temperature compounding with fully automatic honeycomb panel composite production equipment, which overcomes the brittleness problem of the previous honeycomb panel bonding layer. The aluminum honeycomb panel will not change under humid and high-temperature conditions. It is a high-quality, lightweight, high-strength, luxurious, and gorgeous green environmentally friendly decorative material.
High Gain Honeycomb Aluminium Sheet
High Gain Carbon Fiber Composite Products Company can customize different specifications according to customer needs, and also pay attention to environmental protection, and implement the concept of environmental protection in every link of production and manufacturing so that customers can rest assured during use. Our employees are also professionally trained and experienced technicians who can provide customers with the best service.
