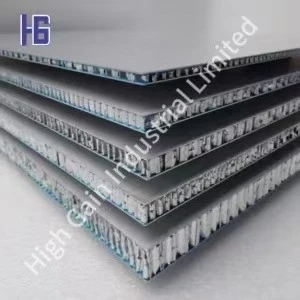

Expanded Aluminum Honeycomb
Expanded aluminum honeycomb Panel Parameters
Size parameters
Panel: 1.0mm, 0.8mm, 0.5mm;
Bottom: 1.0mm, 0.8mm, 0.5mm;
Plate length: 0 mm~6000 mm;
Plate width: 0 mm~2000 mm;
Total plate thickness: 6mm , 10mm, 15mm, 20mm, 25 mm
In addition to aluminum plates, there are many other materials to choose from for the surface and bottom plates, such as: stainless steel plates, color steel plates, galvanized aluminum plates, marble, etc.
Technical Parameters
| ASTM | Units | 10mm | 15mm | 20mm | |
| Unit theoretical weight | kg/m² | 5.4 | 5.6 | 5.75 | |
| Tensile strength | E8 | N/mm² | 806 | 598 | 455 |
| Endurance | E8 | N/mm² | 531 | 405 | 279 |
| Elongation | E8 | % | 1.2 | 1.4 | 17 |
| Flexural rigidity | C393 | X10⁶N.mm² | 8.03 | 15.4 | 38.44 |
| Flexural elasticity | N/mm² | 50000 | 40600 | 38.44 | |
| Temperature elongation coefficient | D696 | 0.24 | 0.24 | 0.24 | |
| Thermal conductivity | D976 | X10-6N/℃ | 0.23 | 0.19 | 0.15 |
| Thermal deformation coefficient | D648 | ℃ | 200 | 200 | 200 |
| Adhesion strength | C297 | N/mm² | 12 | 12 | 12 |
| Surface flatness | The maximum deviation is 1 mm/M | ||||
| Combustion-supporting performance: non-flammable, in compliance with relevant fire protection grade standards | |||||
| Sound insulation performance | Depending on the panel installation angle, there is 0-3dB | ||||
High Gain can customize products of different specifications according to customer requirements
Applications
Building curtain wall exterior wall panels
Shipbuilding
Modern furniture industry
Interior decoration projects
Aviation manufacturing industry
Billboards
Buses, trains, subways, and rail transit vehicles
Indoor partitions and product display stands
Commercial transport vehicles and container truck bodies
Advantages
1.Fireproof: Expanded aluminum honeycomb is a non-combustible material.
2.Corrosion resistance: The surface of the aluminum honeycomb panel is treated with epoxy fluorocarbon and has strong corrosion resistance.
3.Environmental protection: The honeycomb panel is a pure aluminum product. It does not volatilize any gas harmful to the human body. It can be completely recycled and is a 100% environmentally friendly product.
4.Aluminum honeycomb panel is easy to dismantle and assemble without damaging the panel.
5. It is light and easy to transport.

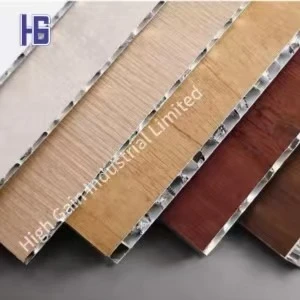

Purchase classification of wood grain aluminum honeycomb panels:

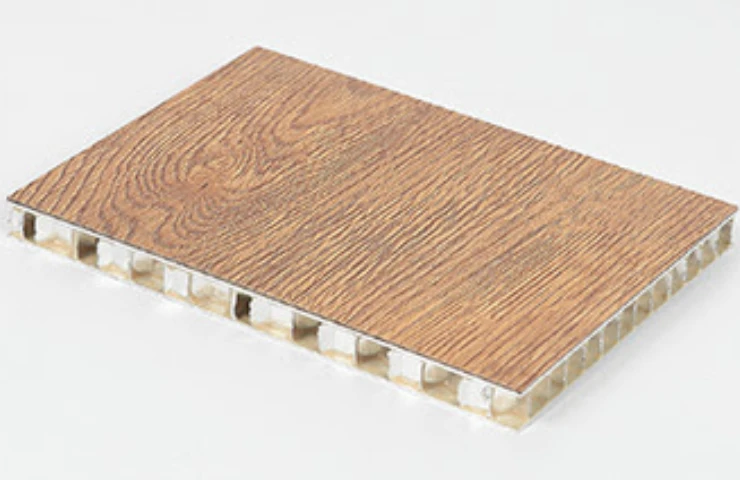

Aluminum wood grain panels
Aluminum honeycomb panels are generally made of 3003, 5005, and other models, and aluminum alloy with a low content of 1100 is rarely used. The decorative surface is sprayed or rolled, and the coating is polyester or fluorocarbon spray. It is best to use spray paint panels for exterior wall panels, and it is required to be coated more than three times, and the thickness of the paint film is ≥40μm to ensure the durability of the coating. The aluminum plate must undergo strict surface anodizing treatment before painting to ensure sufficient coating adhesion and bonding strength with the honeycomb core. The control panel coating should meet the requirements of the national standard YS/T429.2-2000.

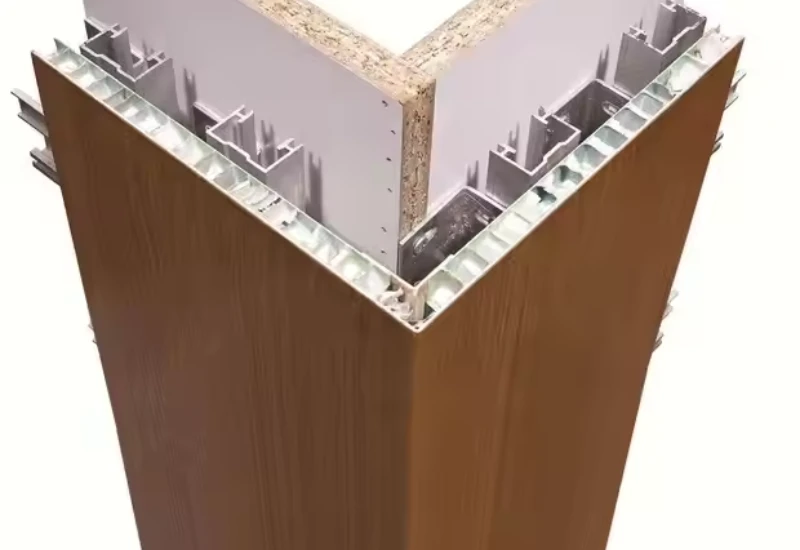

Aluminum side panels
The side panels of aluminum honeycomb panels should be made of the same material as the panel. The surface is anodized, and the side exposed to the air should be sprayed with a protective coating. The coating material can be polyester, epoxy resin, acrylic, and other related materials to prevent the aluminum plate from rusting due to long-term exposure to the air.

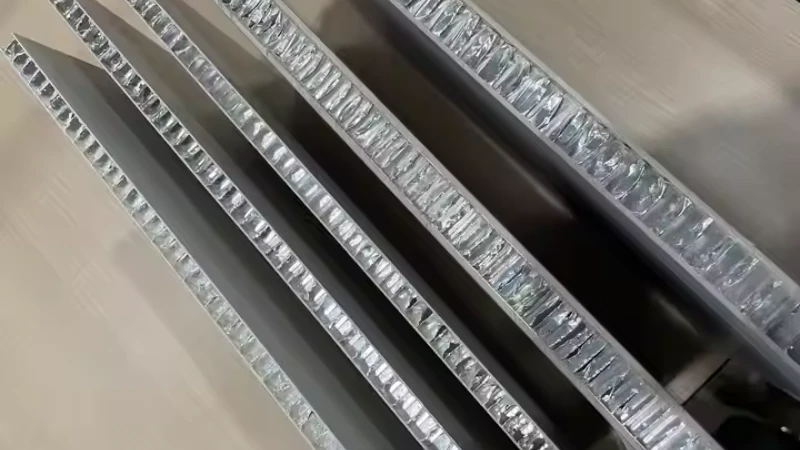

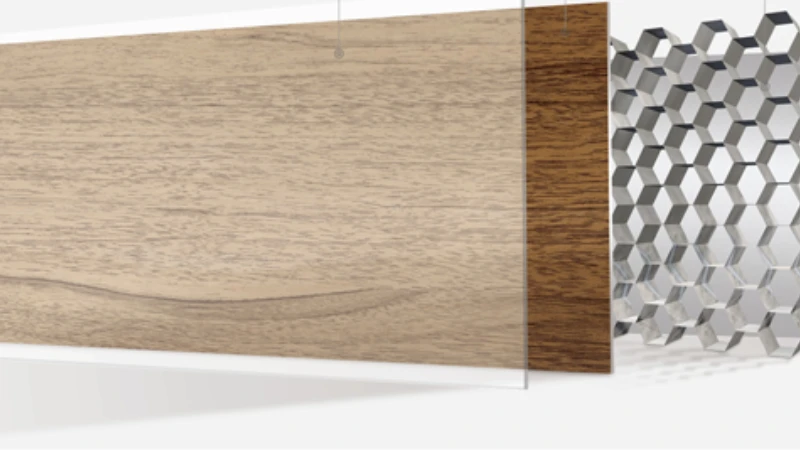

Expanded aluminum honeycomb core board
The aluminum honeycomb core board is produced on the aluminum honeycomb core production line through aluminum foil and special honeycomb joint glue. The factors affecting the properties of honeycomb core board mainly include parameters such as aluminum foil, joint glue, and honeycomb core specifications.
